Gehäuse Schnellkupplungen - Technische Daten
Beschreibung

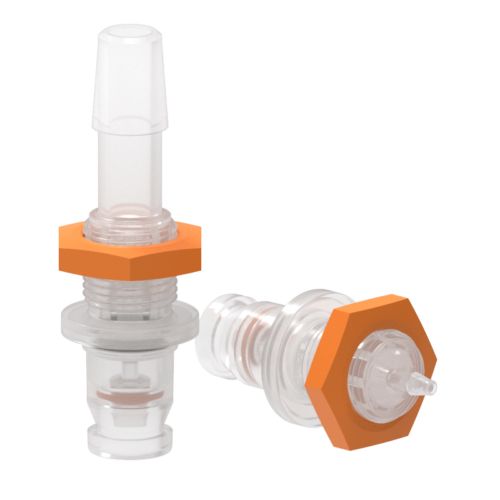

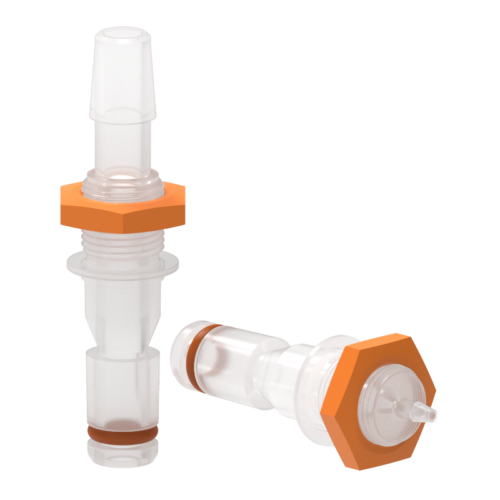

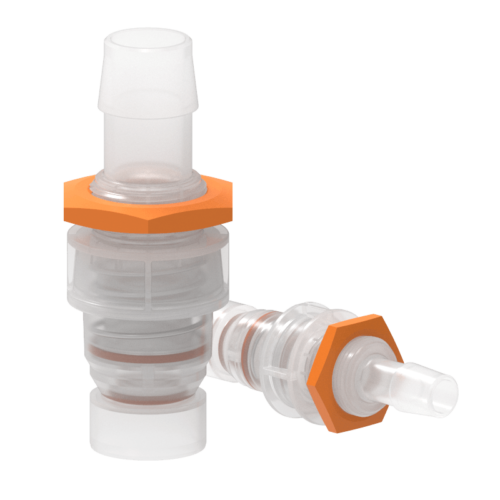

Serien: Micro-O, Micro-V, Small, Medium, Large
Feder nicht im Fluidpfad bei den Serien Small, Medium und Large
Größen:
- 1/16″
- 1/8″
- 3/16″
- 1/4″
- 5/16″
- 3/8″
- 1/2″
- 5/8″
- 3/4″

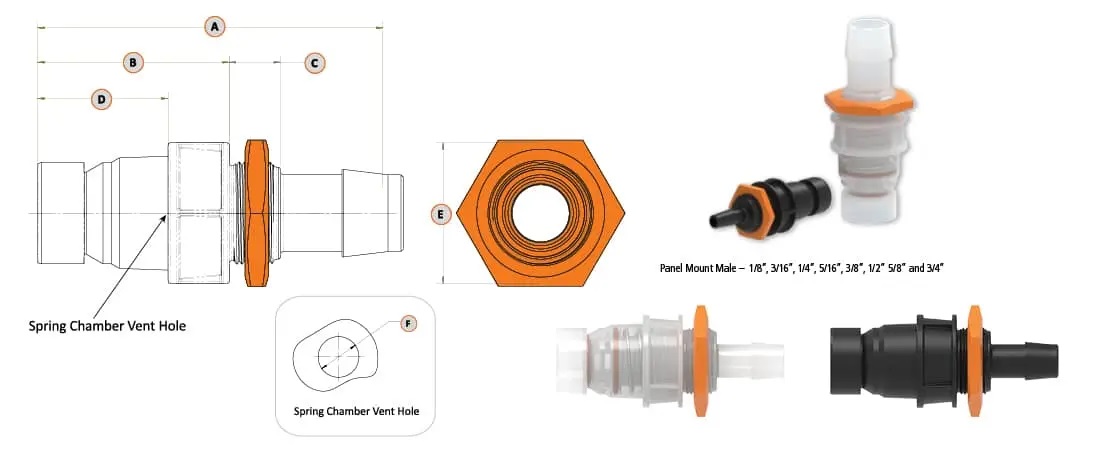

Abmessungen (mm) Serien Small, Medium, Large
Serie
|
Anschluss
|
A
|
B
|
C
|
D
|
E
|
F
|
|---|---|---|---|---|---|---|---|
Small (1)
|
1/8"
|
51,82
|
28,96
|
12,7
|
24,64
|
22,1
|
17,53
|
Small (2)
|
3/16″
|
56,9
|
28,96
|
12,7
|
24,64
|
22,1
|
17,53
|
Medium (1)
|
1/4″
|
68,07
|
36,83
|
12,7
|
26,67
|
25,4
|
17,53
|
Medium (2)
|
5/16"
|
69,34
|
36,83
|
12,7
|
26,67
|
25,4
|
17,53
|
Medium (3)
|
3/8″
|
70,61
|
36,83
|
12,7
|
26,67
|
25,4
|
17,53
|
Large (1)
|
1/2″
|
85,85
|
47,5
|
12,7
|
32,26
|
34,8
|
25,4
|
Large (2)
|
5/8"
|
88,39
|
47,5
|
12,7
|
32,26
|
34,8
|
25,4
|
Large (3)
|
3/4″
|
90,93
|
47,5
|
12,7
|
32,26
|
34,8
|
25,4
|
Gewichte (g) Serien Small, Medium, Large
Serie
|
Anschluss
|
mit Ventile
|
ohne Ventile
| ||||
|---|---|---|---|---|---|---|---|
PP
|
PVDF
|
GFBN
|
PP
|
PVDF
|
GFBN
| ||
Small (1)
|
1/8″
|
6
|
8
|
7
|
4
|
7
|
6
|
Small (2)
|
3/16″
|
6
|
8
|
7
|
4
|
7
|
6
|
Medium (1)
|
1/4″
|
9
|
13
|
12
|
6
|
12
|
11
|
Medium (2)
|
5/16″
|
9
|
13
|
12
|
6
|
12
|
11
|
Medium (3)
|
3/8″
|
10
|
14
|
13
|
6
|
12
|
11
|
Large (1)
|
1/2″
|
20
|
24
|
22
|
14
|
20
|
16
|
Large (2)
|
5/8″
|
20
|
24
|
22
|
14
|
20
|
16
|
Large (3)
|
3/4″
|
21
|
25
|
23
|
15
|
21
|
14
|
