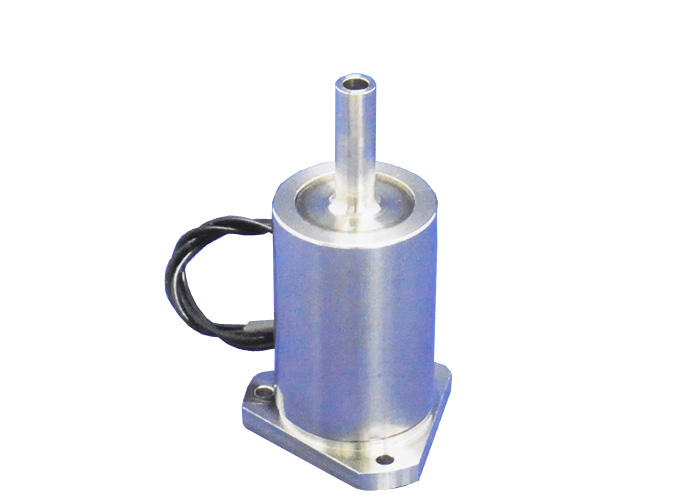

HVC series thruster valves

Beschreibung

2.8 MPa pressure rating

Frictionless moving core

Solenoid Type	2-way N.C. (Normally Closed)
Orifice Diameter	1.5 mm
Port Connection	IN: Pipe OUT: O-ring (Manifold Mount)
Operating Pressure Range	0 – 2.8 MPa
Pressure Drop (Max.)	0.17 MPa (differential) at 12.7 g/sec H20
Temperature Range	4 – 121˚C *1
Rated Voltage	24 – 32 VDC
Power Consumption (Max.)	18 W at 32VDC, 4˚C
Duty Cycle	Intermittent ED: 11% Maximum On Time: 7 min at 32 VDC, 20˚C
Sealing Material	EPDM (Optionally FKM, FFKM)
Weight	200 g

*1: The temperature range may change depending on the sealing material.

Note: Details including specifications may change at any time without notification.
